Hole Diameter: 8.1mm – BB 0.3~2.02mm Micro Drill Solid Carbide Bit Mini CNC Hole Making 3D Shank Diameter 4mm D4 Metal Steel Plastic 1PCS

BB Mirco Drill-BB2055(1PCS)

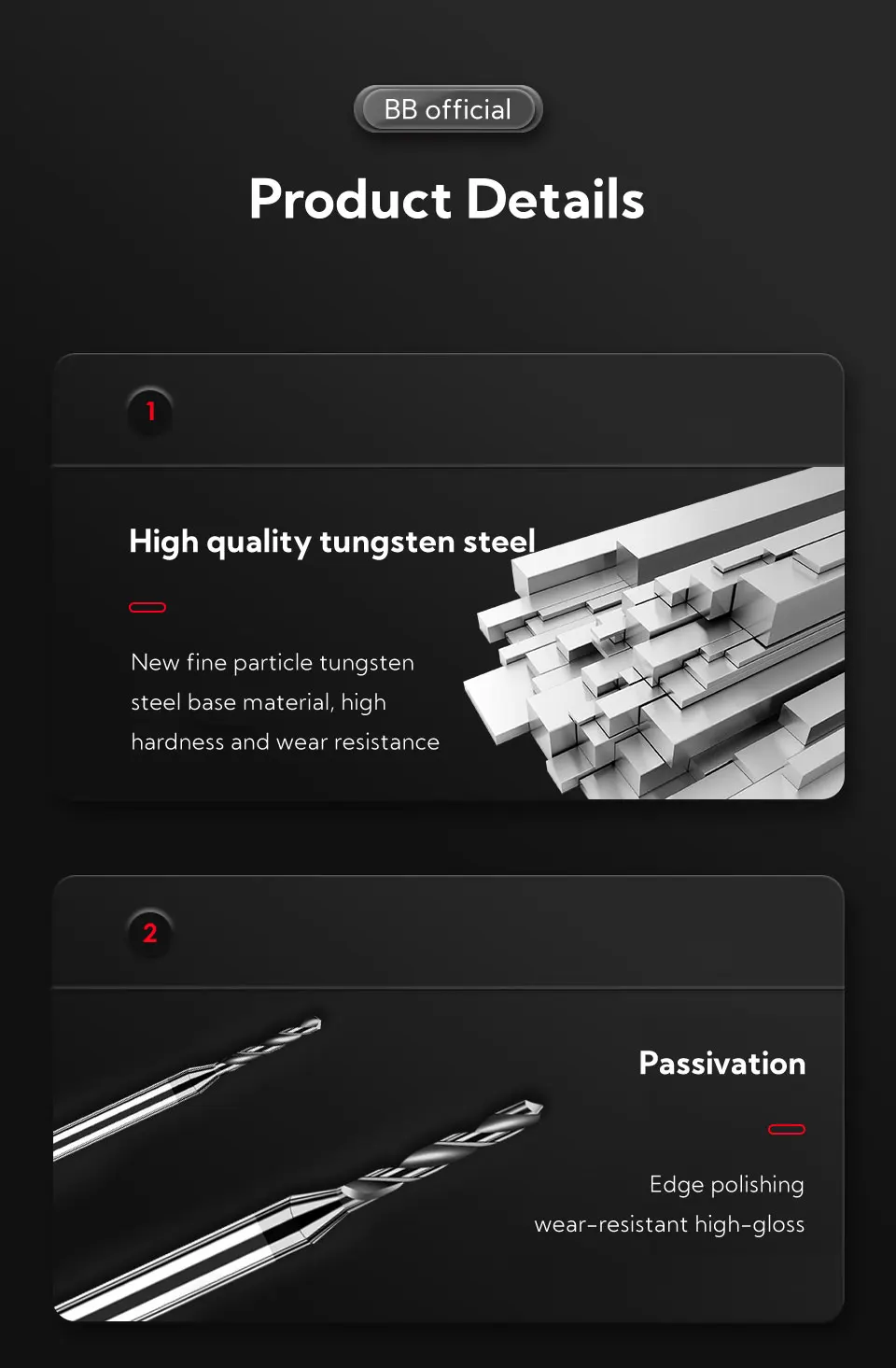

-The whole bit is made of Solid Carbide, which makes the bit more durable. But it also makes it easier to break, so it’s forbidden to use electric hand drills and unstable machining environments.

-Application：
Steel, stainless steel, cast iron, die steel, circuit board,acrylic and so on.

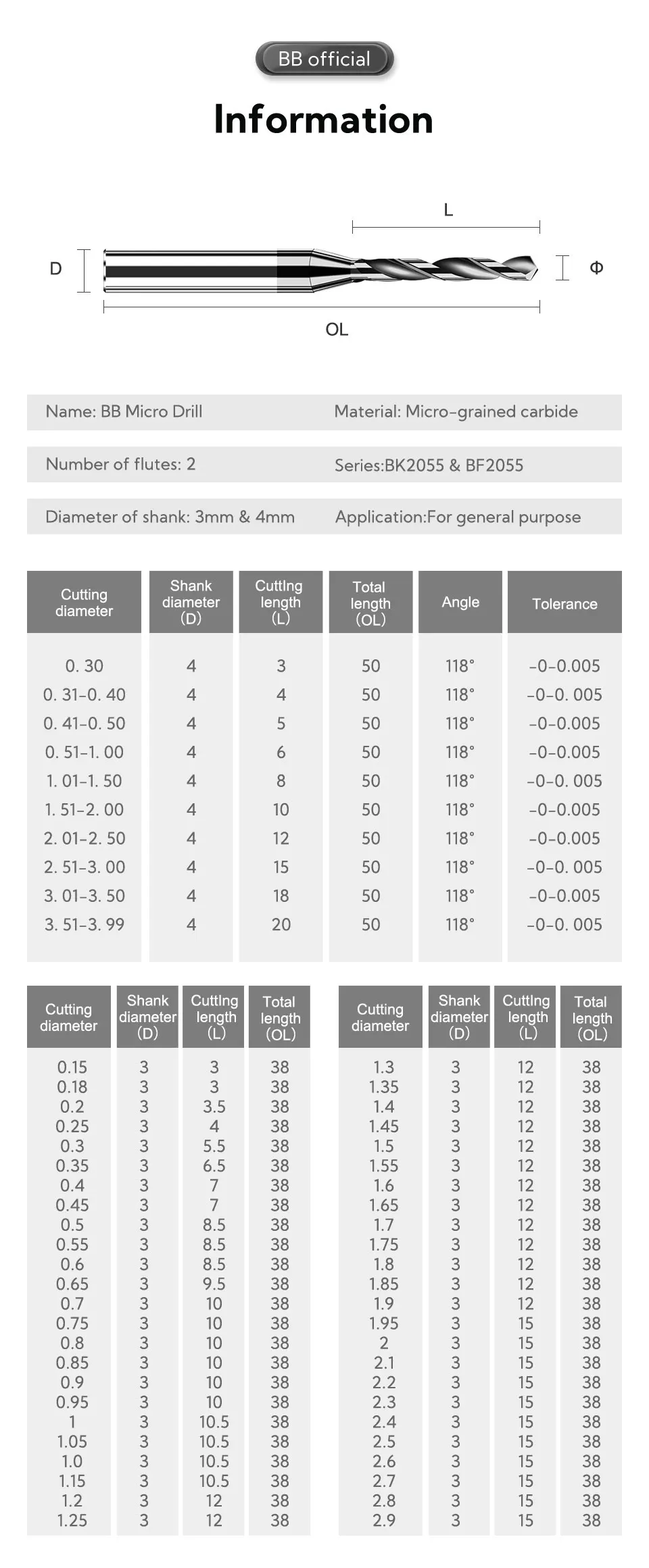

-Diameter of shank :4mm

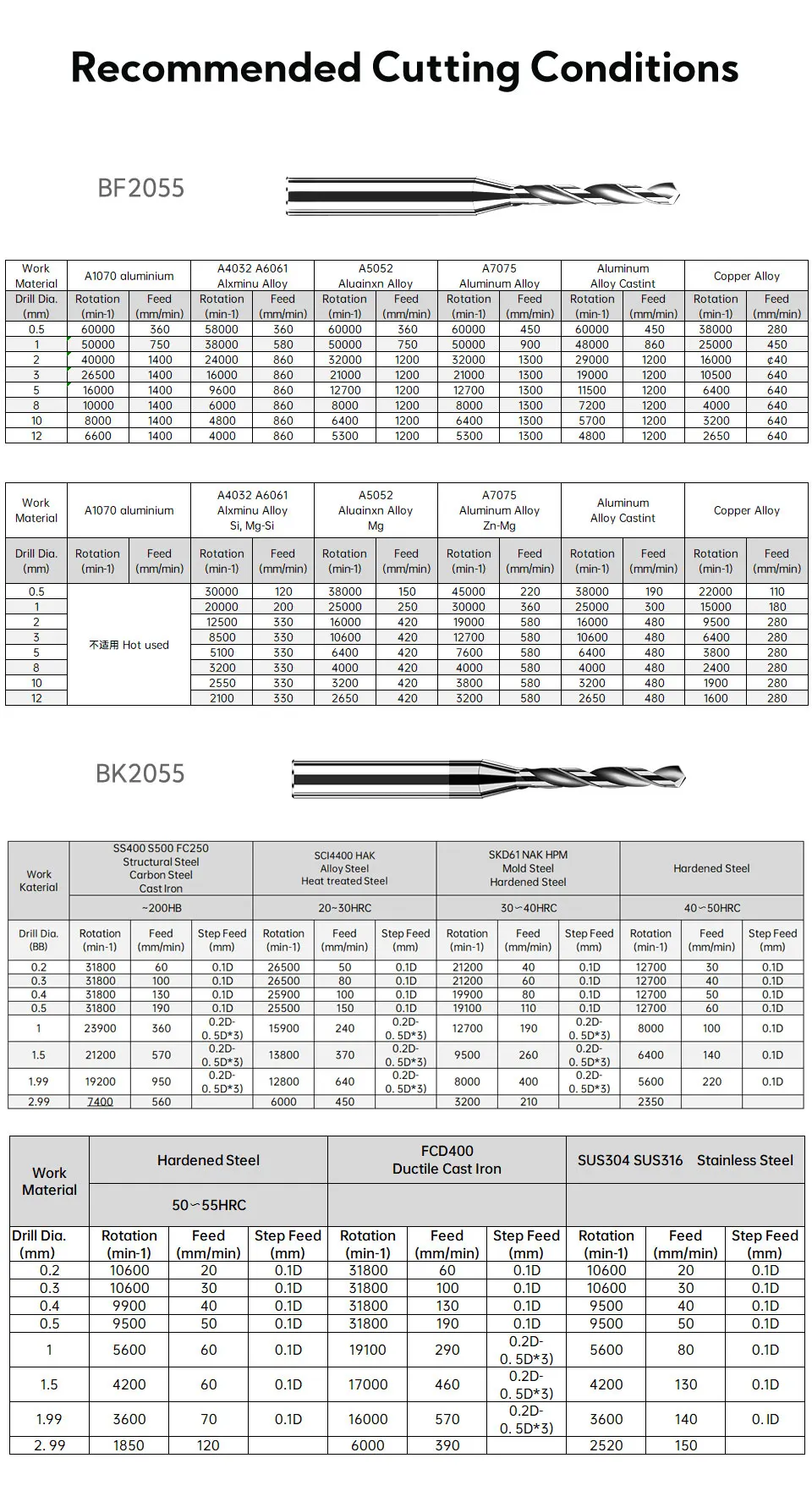

Recommended Cutting Conditions

*Reference parameters are used as the general standard and need to be adjusted according to the Drilling environment.
*When abnormal noise occurs to the workpiece and equipment, please check the situation and change the parameters.
*When the highest speed does not reach the reference standard, please use the highest speed of your equipment for machining, but note that the feed speed also needs to be adjusted proportionally.
*Please fully provide cutting cooling water to the machining position and drilling edge.
*Table parameters are applicable to machining depth smaller than 3xDc. If the depth is greater than 3xDc, reduce the speed by 20%.
*According to the material and depth, select the grading machining method, please return to the top of the hole when grading feed. The grading amount is about 0.2 ~ 1Dc, when the diameter is less than 1mm, 0.1~0.2Dc.
*The beat of the drill bit should be less than 0.02mm.

HI, welcome to BB official store.

-We are professional manufacturer ,development and production of milling tools.
-We provide various tools for you . You can follow us and see more.
-You have free choice of collocation, pick different specifications and other tools in our store to you cart and pay them together. We will send the products you have picked as a package.

SHIPMENT

-We have already paid 80% of delivery cost .
-Orders processed timely after the payment verification.We ship products within 3 working days.
-The trade is cross-border, and Airmail is cheapest post which take a long time for delivery.If you need the item urgently ,please choose Express way.
-If you have not received your shipment within 60 days from payment, please contact us. We will track the shipment and get a reply to you as soon as possible.

We sincerely hope that BB tools will meet your full requirements. Please enjoy your online shopping.
